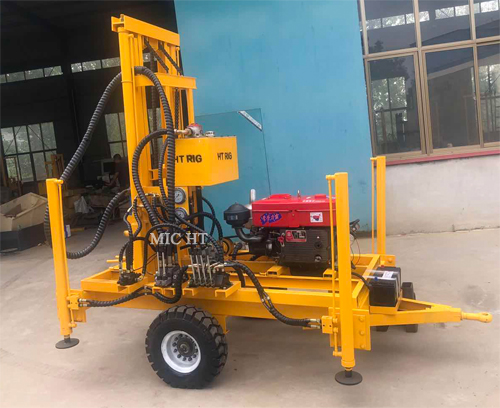

Trailer Mounted Water Well Rotary Head Drilling Rig

Trailer Mounted Water Well Rotary Head Drilling Rig For Sale:

HT is a professional manufacturer for trailer water well rig, water well trailer mounted drilling rig.

Full hydraulic water drilling machine, hydraulic transmission.

700Nm is torque at the rotation speed of 150r/min, torque is in proportion to the rotation speed, if the rotation speed adjusted to 60-70r/min,its torque can become double.

Compared with old models such as HZ rig:
HZ rig uses mechanical transmission whose hydraulic cylinder stroke is only 45cm,our rig uses hydraulic transmission whose hydraulic cylinder stroke is 2m,for a 2m length pipe,our rig only needs one time for hydraulic pressure adding to press it down,but HZ rig needs 4-5 times for hydraulic pressure adding to press it down (labor intensity is big, operation is complicated)

Trailer Water Well Rig:

Model	DH200
Full Hydraulic Working Way	Double hydraulic systems
Max Drilling Depth	210m
Max Drilling Diameter	500mm
Max Torque	900 Nm
Max Lifting Force	100 Kn
Weight	1400Kg
Dimensions	3100*1700*2600 Mm (with wheels) 3100*1700*2150 (without wheels)
Power Source	Diesel engine powered
Main Machine Power	25 Hp
Drilling Angle	0°- 90 °
Rotation Speed	0-150 r/min (Continuously Variable Transmission)

Water Well Trailer Mounted Rig:

Mounted water well drilling rig DH200 working video:

We also have DH150 model trailer water well rig:

DH150 water well trailer mounted rig working video in Youtube:

We also have E80/E100 mounted water well drilling rig:

E80/E100 working video in Youtube:
