Water Well Drilling Machine Fully Hydraulic--DH200

  • Hydraulic Rotary Head Drilling Rig Machine For Sale
Hydraulic Rotary Head Drilling Rig Machine For Sale

Hydraulic Rotary Head Drilling Rig Machine For Sale

  • Rotary Water Well Drilling Rig
  • Brand: HT
  • Certificate: CE
  • Description: HT Brand, DH200 model, full hydraulic working way, double hydraulic systems, one hydraulic system to rotate a drill bit which cuts into the earth, another to to press down.
  • INQUIRY   EMAIL

Hydraulic Rotary Head Drilling Rig Machine For Sale:

HT is a professional manufacturer for hydraulic rotary head drilling rig machine.

Rotary Drilling Rig:

Model DH200
Full Hydraulic Working Way Double hydraulic systems
Max Drilling Depth 210m
Max Drilling Diameter 500mm
Max Torque 900 Nm
Max Lifting Force 100 Kn
Weight 1400Kg
Dimensions 3100*1700*2600 Mm (with wheels)
3100*1700*2150 (without wheels)
Power Source Diesel engine powered
Main Machine Power 25 Hp
Drilling Angle 0°- 90 °
Rotation Speed 0-150 r/min (Continuously Variable Transmission)


Hydraulic Drilling Rig:

Hydraulic Diamond Mining Drill Rig For Sale

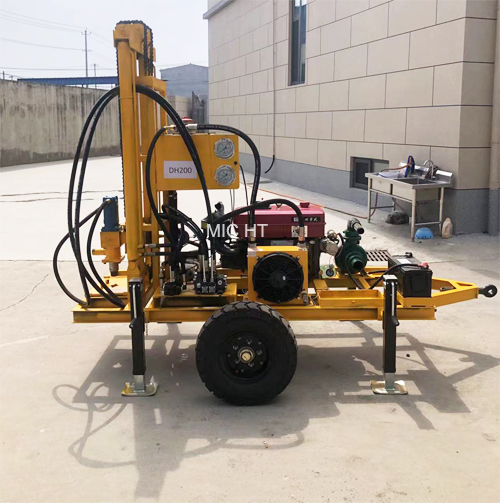

DH200 hydraulic drilling machine:


We also have DH150 model hydraulic rotary drilling rig:

water well drilling rig


DH150 hydraulic drilling rig working video in Youtube:


We also have E80/E100 rotary drilling rig:

water well drilling rig


E80 rotary drilling rig working video in Youtube:


Hydraulic Drilling Machine:
A hydraulic drill machine employs hydraulic systems to power its drilling operations. This type of machine is typically used for a variety of applications, including earth drilling, mining, and foundation drilling. It offers superior precision and control, which can be crucial in complex or sensitive drilling environments. Hydraulic drilling machines are known for their efficiency in transmitting large amounts of energy to the drilling head, providing more torque and enabling faster drilling with less physical effort.


Hydraulic Rotary Drilling Rig:
A hydraulic rotary drilling rig is a type of hydraulic drilling machine specifically designed for rotary drilling. This rig uses a hydraulic system to rotate a drill bit which cuts into the earth. The rotation is powered by hydraulic motors, which provide smooth, consistent power that can be easily adjusted to suit different drilling conditions and materials. These rigs are commonly used in the construction of boreholes for water wells, oil wells, or for exploration purposes. The rig's hydraulic system also allows for the handling of heavy drill pipes and the adjustment of drill pressure to optimize the drilling process.


Hydraulic Rotary Head:
The hydraulic rotary head is a critical component of a hydraulic drilling rig, responsible for the rotation of the drill string and bit. It is driven by hydraulic motors, which allow for precise control over the speed and torque of the rotation. This is particularly advantageous in challenging drilling conditions where varying material densities require adjustments in drilling techniques. The hydraulic rotary head's ability to adjust torque and speed dynamically helps to increase the efficiency and safety of the drilling operation.
