Water Well Drilling Machine Fully Hydraulic--DH200

  • Water Well Drilling Machine 150M Drilling Depth With Heavy Duty
Water Well Drilling Machine 150M Drilling Depth With Heavy Duty

Water Well Drilling Machine 150M Drilling Depth With Heavy Duty

  • Type: water well drilling machine
  • Brand: HT
  • Certificate: CE
  • Description: Water well drilling rig heavy duty, full hydraulic working way, double hydraulic systems, max drilling depth 210m, HT brand from China.
  • INQUIRY   EMAIL

Water well drilling machine is a vital tool in the process of accessing groundwater for various purposes, including drinking water, agriculture, and industrial needs. These machines are equipped with advanced technologies such as automated drilling systems and dual rotary drilling technology, significantly improving drilling efficiency and precision.
Zhengzhou MIC HT Industry Co.,Ltd (HT Engineering Machinery Limited)
Founded in 2004, located in Zhengzhou, capital city of Henan province, is a research and development manufacturer focusing on
water well drilling rig, with good price for sale,

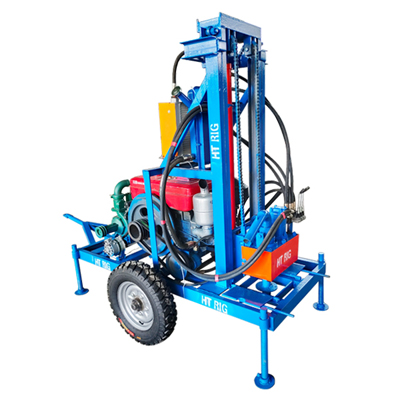

Here are the specifications and photos of our DH150 model for sale.

Model DH150
Principle Positive Cycle
Hydraulic Power 22Hp-Diesel Engine
Water Pump Power Centrifugal Pump--8Hp
Max Drilling Depth 150m
Max Drilling Diameter 420mm
Drilling Pipe 51mm diameter,1.5m/piece
Drilling Bit Alloy Steel For Soil 2 pieces
PDC For Rocks Diameter should be within 250mm
Other Parts For
One Complete Machine
High pressure water pump-1 unit
High pressure water pipe-5m
Tools, seat, oilseal, English manual, Etc




DH120 model water welll drilling rig ,the price is moderate,engine power is 8Hp, so it can not be designed with integrated water pump, it should use the separated pump.

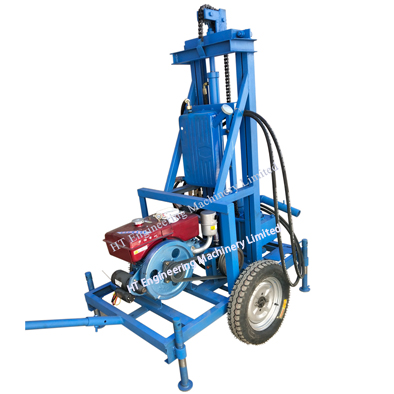

Here are the specifications and photos of our DH120 model for sale.

Model DH120
Principle Positive Cycle
Hydraulic Power 8Hp-Diesel Engine
Water Pump Power Centrifugal Pump--8Hp
Max Drilling Depth 120m
Max Drilling Diameter 400mm
Drilling Pipe 51mm diameter,1.5m/piece
Drilling Bit Alloy Steel For Soil 2 pieces
PDC For Rocks Diameter should be within 250mm
Other Parts For
One Complete Machine
High pressure water pipe-10m
Tools, seat, oilseal, English manual, Etc




GSD-40 model water welll drilling machine with low price ,it uses gasoline engine of 7.5Hp, so it can not be designed with integrated water pump either,we equip a 7.5Hp gasoline pump
to support it. This rig uses mechanical power instead of hydraulic power.
It is suitable for small investment and drill in shallow soft ground.
The advantage of this machine is lightweight and low price.

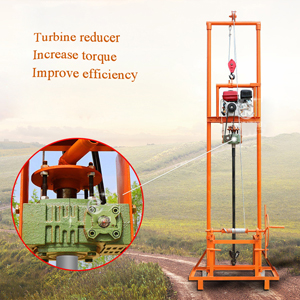

Here are the specifications and photos of our GSD-40 water drilling machine for sale.

Model GSD-40
Rig Power 7.5Hp, gasoline type
Water Pump Power 7.5Hp, gasoline type
Drilling Way Power head rotation + manual pressurization
Lift Way Winch + manual lift
Weight 120 Kg
Dimension (length x width x height) 1000 x 700 x 3100 mm


DH200 model water welll drilling machine with high price ,the engine power is 35Hp, with two hydraulic systems, one is for rotation and lifting, another is for adding pressure to
power head, very suitable for drilling rocks. Hydraulic cylinder stroke is 2m,
for a 2m length pipe, this rig only needs one time for adding hydraulic pressure to
press it down, it can be designed either with integrated water pump or with separated pump.

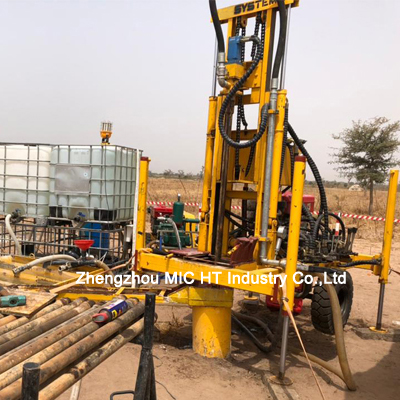

Here are the specifications and photos of our DH200 water drilling rig for sale.

Model DH200
Working Way Full hydraulic, double hydraulic systems
Max Drilling Depth 210m
Max Drilling Diameter 500mm
Max Torque 900 Nm
Max Lifting Force 100 Kn
Weight 1400Kg
Main Machine Power 35 Hp
Drilling Angle 0°- 90 °
Rotation Speed 0-150 r/min (Continuously Variable Transmission)



Operation Of Water Well Drilling Machine:

Drilling Work : You should grasp the working essentials before the actual operation.
Choose The Location Of Wells.
After the wellhead location has been selected, shovel 30-50cm deep and diameter 30cm wellhead. then move the installed rig above the wellhead. The soil structure around the well requires good solid, underneath can not have bricks, gravel or firewood, to avoid water seepage, landslides or subsidence.
Dig A Reservoir:
About four meters away from the wellhead position, dig a cistern with caliber greater than 1.5 square meters, one meter deep, soft water hose is used to connect the pump and the faucet of drilling machine, hard water pipe is used to connect the pump and water in reservoir.
Run the machine:
Run the machine according to instruction manual provided by us.
Add Drill Pipe One By One.
After the first pipe is down, you add the second pipe, one end of the second pipe is connected to the power head, another end is connected to the first pipe, make the machine Forward Rotation to tighten the connection.
Remove Drill Pipe One By One.
After you touch the water level, you can discharge the pipe, first connect the pulling out tool to the power head, then use this tool to pull out all pipes one by one, make the machine, Reverse Rotation to loosen the connction of pipes.
