Water Well Drill Rig Fully Hydraulic--DH200

  • 150M Diesel Water Well Drilling Rig
150M Diesel Water Well Drilling Rig

150M Diesel Water Well Drilling Rig

  • Use: Water Well Drilling
  • Type: 150M Diesel Water Well Drilling Rig
  • Brand Name: HT
  • Certificate: CE
  • Description: HT is a professional manufacturer for 150m diesel water well drilling rig.
  • INQUIRY   EMAIL

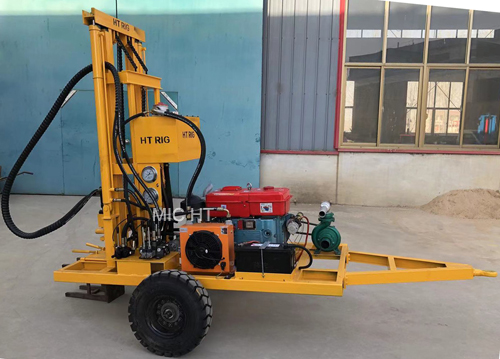

150M Diesel Water Well Drilling Rig:

HT is a professional manufacturer for diesel water well drilling rig, 150m water well drilling rig.

Diesel Water Well Drilling Rig:

Model

DH200

Full Hydraulic Working Way

Double hydraulic systems

Max Drilling Depth

210m

Max Drilling Diameter

500mm

Max Torque

900 Nm

Max Lifting Force

100 Kn

Weight

1400Kg

Dimensions

3100*1700*2600 Mm (with wheels)

3100*1700*2150 (without wheels)

Power Source

Diesel engine powered

Main Machine Power

25 Hp

Drilling Angle

0°- 90 °

Rotation Speed

0-150 r/min (Continuously Variable Transmission)


150M Water Well Drilling Rig:

150M Diesel Water Well Drilling Rig


DH200 Working Video.


We also have DH150 diesel water well drilling rig:

water well drilling rig


DH150 working video in Youtube:


We also have E80/E100 water well drilling rig:

water well drilling rig


E80 working video in Youtube:
