Rotary Water Well Drilling Rig Fully Hydraulic--DH200

Deep Well Drilling Boring Equipment Machine

Description: Deep Well Drilling Boring Equipment Machine: Our deep well boring machines are designed to handle the toughest drilling tasks, providing exceptional performance for deep water well projects.
INQUIRY EMAIL

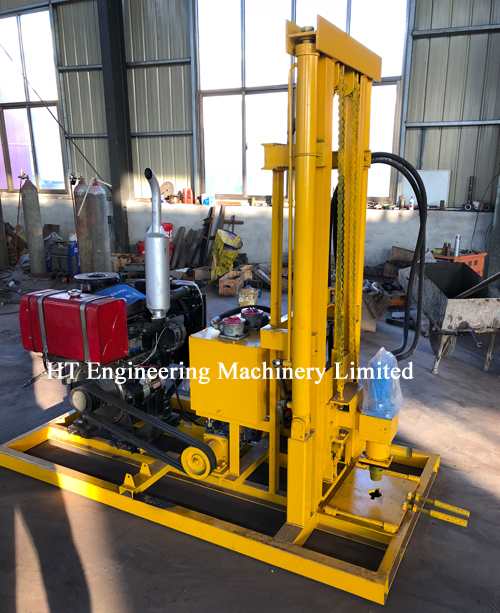

Deep Well Drilling Boring Equipment Machine:

Our deep well boring machines are designed to handle the toughest drilling tasks, providing exceptional performance for deep water well projects. With advanced technology and robust construction, these machines are perfect for extracting water from significant depths. Whether you need deep well drilling equipment machines for large-scale commercial projects or residential applications, our machines offer precision and efficiency in all conditions. Invest in high-quality equipment to ensure successful and long-lasting drilling results.

Deep Well Boring Machine:

Model	DH200
Full Hydraulic Working Way	Double hydraulic systems
Max Drilling Depth	210m
Max Drilling Diameter	500mm
Max Torque	900 Nm
Max Lifting Force	100 Kn
Weight	1400Kg
Dimensions	310017002600 Mm (with wheels) 310017002150 (without wheels)
Power Source	Diesel engine powered
Main Machine Power	25 Hp
Drilling Angle	0°- 90 °
Rotation Speed	0-150 r/min (Continuously Variable Transmission)
