Fully Hydraulic Water Well Drill Rig DH200

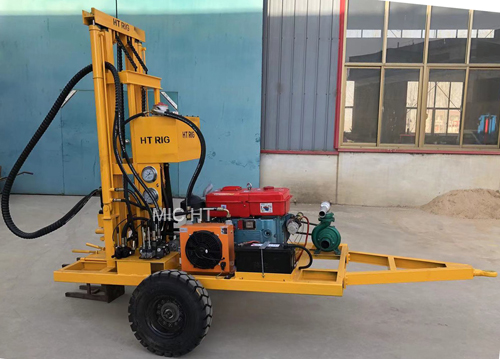

  • HT-W180 Water Well Drilling Rig 180 Bore Hole Mining Drill Rig For Quarry
HT-W180 Water Well Drilling Rig 180 Bore Hole Mining Drill Rig For Quarry

HT-W180 Water Well Drilling Rig 180 Bore Hole Mining Drill Rig For Quarry

  • Brand Name: HT
  • Type:Rotary Drilling Rig
  • Usage:Water Well
  • Certification: CE
  • Description: HT is a professional manufacturer for bore hole mining drill rig for quarry, HT-W180 water well drilling rig, water well drilling rig 180.
  • INQUIRY   EMAIL

HT-W180 Water Well Drilling Rig 180 Bore Hole Mining Drill Rig For Quarry:

HT is a professional manufacturer for bore hole mining drill rig for quarry, HT-W180 water well drilling rig, water well drilling rig 180.

Full hydraulic drilling rig,hydraulic transmission.

700Nm is torque at the rotation speed of 150r/min, torque is in proportion to the rotation speed, if the rotation speed adjusted to 60-70r/min,its torque can become double.

Compared with old models such as HZ rig :

HZ rig uses mechanical transmission whose hydraulic cylinder stroke is only 45cm,our rig uses hydraulic transmission whose hydraulic cylinder stroke is 2m,for a 2m length pipe,our rig only needs one time for hydraulic pressure adding to press it down,but HZ rig needs 4-5 times for hydraulic pressure adding to press it down (labor intensity is big, operation is complicated)


Water Well Drilling Rig 180:

HT-DH200 Full HydraulicWater Well Machine (Two Hydraulic Systems)

Working Way

Hydraulic

Power Source

Diesel Powered

Total Power

47Hp

Max Drilling Depth

210m

Max Drilling Diameter

500mm

Drilling Angle

0°- 90 °

Rotation Speed

0-150r/min (Continuously Variable Transmission)

Max Torque

700Nm

Max Lifting Force

100KN

Machine Height

3.2 M (working state) 2.2M ( transportation state )

Weight

800 Kg

Dimension

3000 x 1300 x 2200 MM


Main Machine Part

Main Power

25Hp,Electric Start, Hydraulic System

Drilling Rod

2 M/Piece

OD 50mm,ID 40mm

Seamless Steel Pipe

Drilling Bit

Max Diameter:500mm

Alloy Steel For Soil, PDC For Rock

Mud Pump

Supporting Equipment,22Hp, Electric Start

Steel Card Board

Demount The Drilling Rod

Water Seal

Inner Seal Of The Drilling Power Head


Bore Hole Mining Drill Rig For Quarry:

HT-W180 Water Well Drilling Rig 180 Bore Hole Mining Drill Rig For Quarry


HT-W180 water well drilling rig:

DH200 Working Video.
