Water Well Drill Rig Fully Hydraulic--DH200

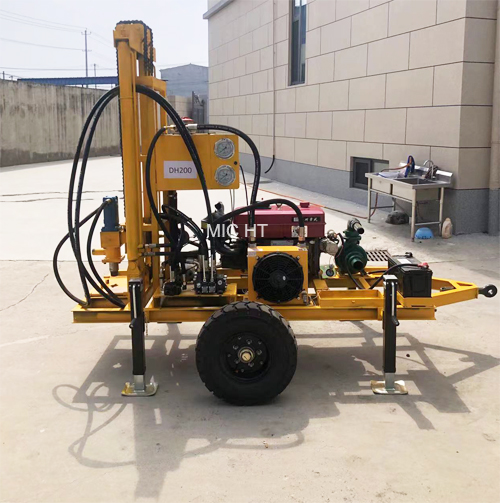

  • 200M Water Well Rotary Drill Rig For 200mm
200M Water Well Rotary Drill Rig For 200mm

200M Water Well Rotary Drill Rig For 200mm

  • Brand Name: HT
  • Type:Rotary Drilling Rig
  • Usage:Water Well
  • Certification: CE
  • Description: HT is a professional manufacturer for 200m water well rotary drill rig, drill rig for water well 200mm, water well drill rig 200.
  • INQUIRY   EMAIL

200M Water Well Rotary Drill Rig For 200mm:

HT is a professional manufacturer for 200m water well rotary drill rig, drill rig for water well 200mm, water well drill rig 200.

200M Water Well Rotary Drill Rig:

Model

DH200

Full Hydraulic Working Way

Double hydraulic systems

Max Drilling Depth

210m

Max Drilling Diameter

500mm

Max Torque

900 Nm

Max Lifting Force

100 Kn

Weight

1400Kg

Dimensions

3100*1700*2600 Mm (with wheels)

3100*1700*2150 (without wheels)

Power Source

Diesel engine powered

Main Machine Power

25 Hp

Drilling Angle

0°- 90 °

Rotation Speed

0-150 r/min (Continuously Variable Transmission)


Drill Rig For Water Well 200mm:

200M Water Well Rotary Drill Rig For 200mm


Water well drill rig 200.

DH200 Working Video.


Water well drilling rig machine, DH150 model, diesel hydraulic:

Model

DH150

Principle

Positive Cycle

Hydraulic Power

22Hp-Diesel Engine

Water Pump Poewr

Centrifugal Pump--8Hp

Max Drilling Depth

150m

Max Drilling Diameter

420mm

Drilling Pipe

51mm diameter,1.5m/piece

Drilling Bit

Alloy Steel For Soil

2 pieces

PDC For Rocks

Diameter should be within 150mm

Other Parts For One

Complete Machine

High pressure water pump-1 unit

High pressure water pipe-5m

Tools, seat, oilseal, English manual, Etc


DH150 small portable water well drilling rig machine, with auto water flow control function:

water well drilling rig


DH150 water well driling rig, water well drilling machine in Youtube:


Water Well Drilling Rig, Water Well Drilling Machine, Electric Model:

Model

E80

E100

Principle

Positive Cycle

Positive Cycle

Electricity

Single Phase

Three Phases

Drive Motor

2kw (60V DC)

3kw

Lift Mtor

1.5kw (60V DC)

1.5kw

High Pressure Submerged Pump

2.2kw

2.2kw

Max Drilling Depth

80m

100m

Max Drilling Diameter

200mm

400mm

Drilling Pipe

42mm diameter, 1.5m/piece

50mm diameter, 1.5m/piece

Drilling Pipe Equipped

50m

50m

Drilling Bit Equipped

2 pieces

2 pieces

One small bit (60mm,90mm) + one big bit (160-500mm)

Other Parts For One Complete Machine

High pressure submerged pump-1 unit

High pressure water pipe-5m

Voltage transformer(change 220V AC to 60V DC)

Only used for E80-P1 model

Tools, seat, oil seal, English manual, etc


Water Well Drilling Rig, Water Well Drilling Machine, E80 Electricity Model:

water well drilling rig


E80 water well driling rig, water well drilling machine in Youtube:
