HT is a professional manufacturer for water borehole drilling machine .
A small water well boring machine is a compact and efficient solution for drilling water wells in residential, agricultural, or remote locations. This drilling borehole machine water designed by hydraulic working way, for easy transportation and operation, making them ideal for small-scale projects. Despite their size, drilling rig portable offers reliable performance and can penetrate various soil and rock layers to access underground borewell sources.
A water well bore hole drill rig, also known as a water bore well drill rig, is essential for accessing underground borewell by creating deep, precise boreholes. These borewell drilling machines are designed to handle various soil and rock conditions by hyraulic, ensuring efficient and accurate drilling. Water borehole drilling equipment with advanced features such as hydraulic systems, powerful drill bits, and automated controls to enhance performance and safety. Ideal for residential, agricultural, and industrial applications, a water well bore hole drill rig provides a reliable solution for securing a steady water supply.
| Model | DH150 Borehole Drilling Machine | |
| Principle | Positive Cycle | |
| Hydraulic Power | 25Hp-Diesel Engine | |
| Water Pump Power | Centrifugal Pump--8Hp | |
| Max Drilling Depth | 150m | |
| Max Drilling Diameter | 420mm | |
| Drilling Pipe | 51mm diameter,1.5m/piece | |
| Drilling Bit | Alloy Steel For Soil | 2 pieces |
| PDC For Rocks | Diameter should be within 250mm | |
|
Other Parts For One Complete Machine |
High pressure water pump-1 unit | |
| High pressure water pipe-5m | ||
| Tools, seat, oilseal, English manual, Etc | ||
E80 water borehole drilling equipment working video in Youtube:
DH200 borewell rig for sale:
Drilling Work :
You should grasp the working essentials of hydraulic water borehole drilling machine before the actual operation.
Choose The Location Of Wells.
After the wellhead location has been selected, shovel 30-50cm deep and diameter 30cm wellhead. then move the installed water bore equipment above the wellhead. The soil structure around the borewell requires good solid, underneath can not have bricks, gravel or firewood, to avoid water seepage, landslides or subsidence.
Dig A Reservoir:
About four meters away from the wellhead position, dig a cistern with caliber greater than 1.5 square meters, one meter deep, soft water hose is used to connect the pump and the faucet of borewell drilling rig, hard water pipe is used to connect the pump and water in reservoir.
Run The Water Borehole Drilling Machine:
Run the small borehole drilling machine according to instruction manual provided by us.
Add Drill Pipe One By One.
After the first pipe is down, you add the second pipe, one end of the second pipe is connected to the power head, another end is connected to the first pipe, make the water borehole drilling machine forward rotation to tighten the connection.
Remove Drill Pipe One By One.
After you touch the water level, you can discharge the pipe, first connect the pulling out tool to the power head, then use this tool to pull out all pipes one by one, make the machine reverse rotation to loosen the connction of pipes.
1. Types of Borehole Drilling Rig:
Rotary borehole machine:
Rotary borehole machine is commonly used for bore hole drilling in various geological formations.
They utilize a rotating drill bit attached to drill pipe to penetrate the ground and extract soil and rock samples.
Direct Push Drilling Equipment:
Direct push borehole drilling equipment relies on hydraulic pressure to push a drill string into the ground, collecting soil and groundwater samples as it advances. This method is often used for environmental monitoring and sampling.
Tricycle mounted Drilling Machine For Borehole: Based on the feedback of our client, we have produced a water well borehole drilling rig that can be directly mounted on your own vehicle. This structure is compact and safe, effectively solving the problem of long-distance transportation and bringing great convenience to our clients.

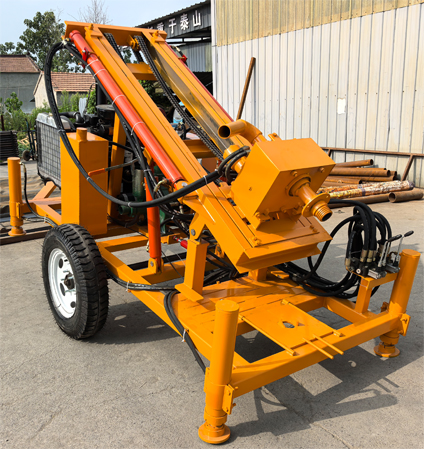

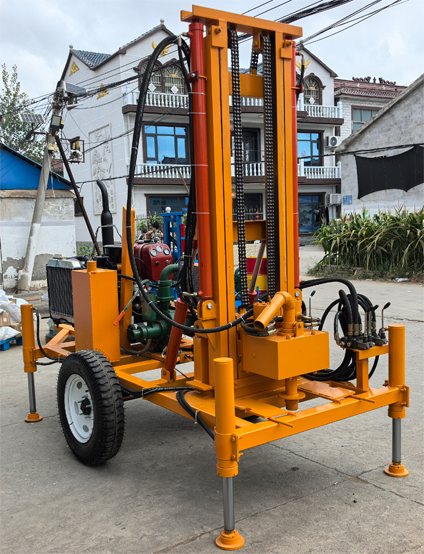

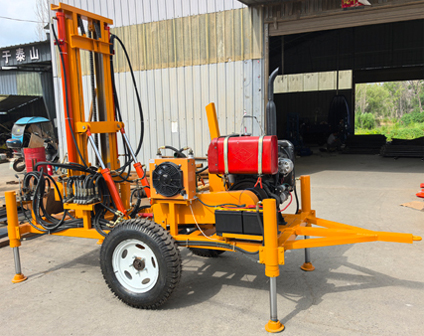

Below are photos of this water well drilling machine:

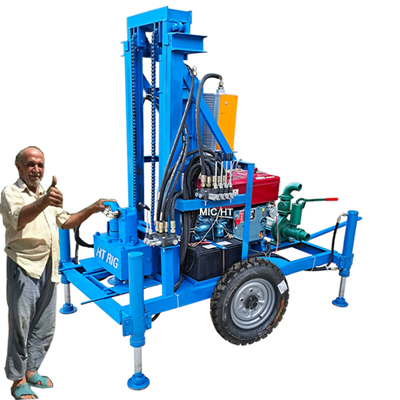

Below is the feedback from one of our clients.
2. The Price Of Water Drilling Machine :
The price of water drilling machine can vary widely depending on factors such as size, capacity, and capabilities. Rotary drilling rigs, which are more versatile and suitable for various geological conditions, typically range from several thousand to several hundred thousand dollars.
3. Portable Water Well Drilling Machine:
Portable water drilling machine offers the advantage of mobility and flexibility, allowing users to access remote or hard-to-reach areas for borehole drilling.
Portable well drilling machine are particularly useful for small-scale projects, such as rural water supply, backyard wells, or emergency response situations where access to water is limited.
We also can equip the portable water well inspection system , enhancing well maintenance and auality assurance.
