Introduction and Applications:

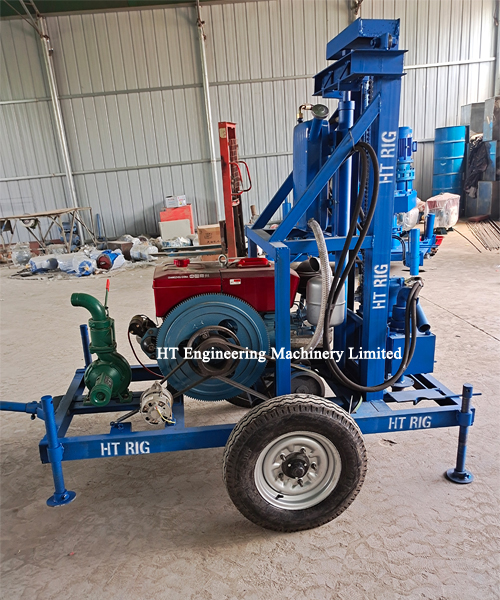

HT is a professional manufacturer for water drilling equipment, the machine used to drill a water well, to solve the problem of water lack in the world, with the technology imporoved, compared with sunmoy drilling rig price, we are factory supplier and add auto water flow function now.
Advantages:
1 One man can operate, auto water flow control function.
2 Double lift chains, with hydraulic oil radiator.
3 Drilling process is stable, no jamming or shaking.
4 Electric start, it can charge the battery automatically.
5 Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
6 hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)
Working Principle:
Positive Cycle, hydraulic power.
Optional Parts:
PDC diamond bit, tricone bit.
Engine:
25Hp diesel engine.
Mud Pump:
Built-in pump or separated pump.
FAQ:
1 What is drilling Bit ?
It is the drilling bit at the end of the drilling pipe,it can decide the diameter of the well.
We can customize the drilling bit according to your requirement.
2 What is drilling Pipe(rod)?
It deccides how deep you can drill a well,the material is steel.OD(outer diameter) is 42/50/64mm.
| Model | DH150 | |
| Principle | Positive Cycle | |
| Hydraulic Power | 25Hp-Diesel Engine | |
| Water Pump Power | Centrifugal Pump--8Hp | |
| Max Drilling Depth | 150m | |
| Max Drilling Diameter | 420mm | |
| Drilling Pipe | 51mm diameter,1.5m/piece | |
| Drilling Bit | Alloy Steel For Soil | 2 pieces |
| PDC For Rocks | Diameter should be within 250mm | |
|
Other Parts For One Complete Machine |
High pressure water pump-1 unit | |
| High pressure water pipe-5m | ||
| Tools, seat, oilseal, English manual, Etc | ||
E80 working video in Youtube, water well drilling rig suppliers, its price for sale is cheaper:
When considering the task of water drilling prices, it's essential to explore various equipment options to ensure cost-efficiency and effectiveness. Among the top choices, besides the Sunmoy drilling rig, HT Rig is also a famous brand, known for its robust performance and reliability, the HT drilling rig offers a viable investment for those needing to drill water wells. The overall water well drilling rig price in China can vary significantly based on the depth required and the geological conditions at the site. Investing in a quality drilling rig like HT can lead to substantial long-term savings on both operation and maintenance, making it a preferred option for many professionals in the field.
