Portable Water Well Borehole Drilling Rig Price--DH150 (Diesel Hydraulic)

Track Type Water Well Borehole Drilling Rig Latest Model

Description: Track Type Water Well Borehole Drilling Rig Latest Model.
INQUIRY EMAIL

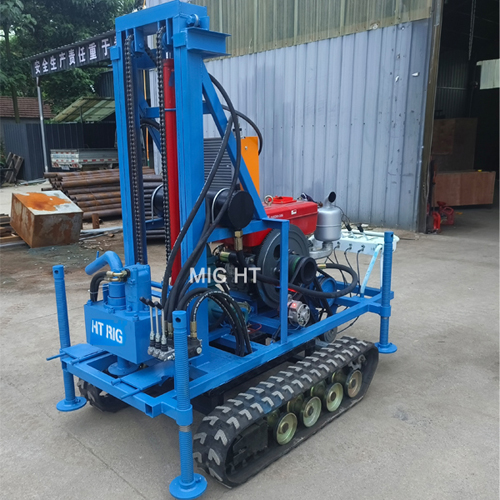

Track Type Water Well Borehole Drilling Rig, Latest Model:

Introduction and Applications:
Discover track type water well borehole drilling machine, efficient, and easy to operate. Perfect for rural water projects, farms, and home use. High performance and mobility combined for reliable borehole drilling anywhere.

Advantages:
1 One man can operate, auto water flow control function.
2 Double lift chains, with hydraulic oil radiator.
3 Drilling process is stable, no jamming or shaking.
4 Electric start, it can charge the battery automatically.
5 Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
6 hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)

Working Principle:
Positive Cycle, hydraulic power.

Optional Parts:
PDC diamond bit, tricone bit.

Engine:
25Hp diesel engine.

Mud Pump:
Built-in pump or separated pump.

FAQ:
1 What is drilling Bit ? It is the drilling bit at the end of the drilling pipe,it can decide the diameter of the well.
We can customize the drilling bit according to your requirement.
2 What is drilling Pipe(rod)?
It deccides how deep you can drill a well,the material is steel.OD(outer diameter) is 42/50/64mm.

Track-Type Water Well Borehole Drilling Rig Technical Parameters:

Model	DH150
Principle	Positive Cycle
Hydraulic Power	25Hp-Diesel Engine
Water Pump Power	Centrifugal Pump--8Hp
Max Drilling Depth	150m
Max Drilling Diameter	420mm
Drilling Pipe	51mm diameter,1.5m/piece
Drilling Bit	Alloy Steel For Soil	2 pieces
	PDC For Rocks	Diameter should be within 250mm
Other Parts For One Complete Machine	High pressure water pump-1 unit
	High pressure water pipe-5m
	Tools, seat, oilseal, English manual, Etc
