Introduction and Applications:
Looking for high-quality portable water well rig from China? Our selection of water well rig from China offers exceptional performance and reliability for all your drilling needs. Whether you need a compact drilling water well machine for a residential project or a heavy-duty machine for commercial use, our Chinese-manufactured HT rigs provide advanced technology and durability at competitive prices. Explore our range of water well drilling machines from China that are designed to deliver precision and efficiency, ensuring successful drilling operations every time. Choose a water well drilling rig from China for a cost-effective solution to your water well drilling projects.
Advantages:
1 One man can operate, auto water flow control function.
2 Double lift chains, with hydraulic oil radiator.
3 Drilling process is stable, no jamming or shaking.
4 Electric start, it can charge the battery automatically.
5 Thicked and strong water swivel, inlet water pipe can change direction, with the screw to fix the inlet water pipe to ensure there is no water leak.
6 hydraulic oil radiator installed at the top near the hydraulic tank, it can cool the hydraulic oil well, also can prevent accidental collision (if installed below, it is easily crushed during transportation)
Working Principle:
Positive Cycle, hydraulic power.
Optional Parts:
PDC diamond bit, tricone bit.
Engine:
25Hp diesel engine.
Mud Pump:
Built-in pump or separated pump.
FAQ:
1 What is drilling Bit ?
It is the drilling bit at the end of the drilling pipe,it can decide the diameter of the well.
We can customize the drilling bit according to your requirement.
2 What is drilling Pipe(rod)?
It deccides how deep you can drill a well,the material is steel.OD(outer diameter) is 42/50/64mm.
| Model | DH150 | |
| Principle | Positive Cycle | |
| Hydraulic Power | 25Hp-Diesel Engine | |
| Water Pump Power | Centrifugal Pump--8Hp | |
| Max Drilling Depth | 150m | |
| Max Drilling Diameter | 420mm | |
| Drilling Pipe | 51mm diameter,1.5m/piece | |
| Drilling Bit | Alloy Steel For Soil | 2 pieces |
| PDC For Rocks | Diameter should be within 250mm | |
| Other Parts For One Complete Machine | High pressure water pump-1 unit | |
| High pressure water pipe-5m | ||
| Tools, seat, oilseal, English manual, Etc | ||
Based on the feedback of our client, we have produced a water well drilling rig that can be directly mounted on your own vehicle. This structure is compact and safe, effectively solving the problem of long-distance transportation and bringing great convenience to our clients.

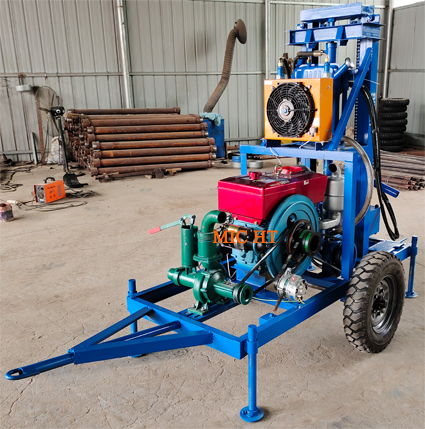

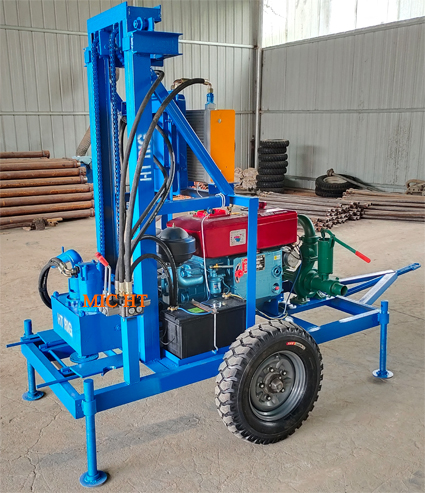

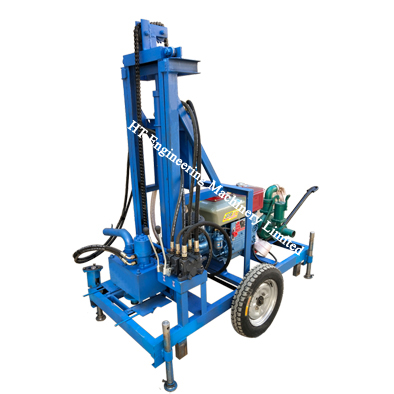

Below are photos of this water well drilling machine:

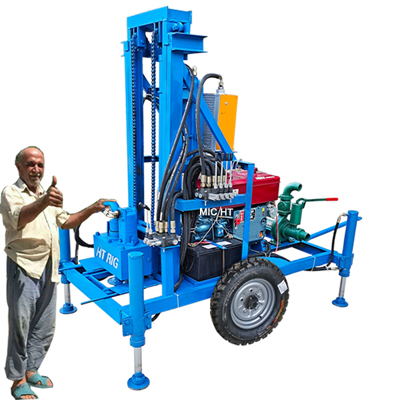

Below is the feedback from one of our clients.
Below is a video to show how to install it on a tricycle:
E80 working video in Youtube:
DH200 working video in Youtube:
