Portable Water Well Drilling Machine Price--DH150 (Diesel Hydraulic)

  • Mobile Mini Borehole Water Well Drilling Rigs Machine For Sale
Mobile Mini Borehole Water Well Drilling Rigs Machine For Sale

Mobile Mini Borehole Water Well Drilling Rigs Machine For Sale

  • Type: Mini Borehole Water Well Drilling Rigs Machine
  • Brand Name: HT
  • Certificate: CE
  • Description: Mobile water well borehole drilling machine, mini type rig, HT professional manufacturer for sale.
  • INQUIRY   EMAIL

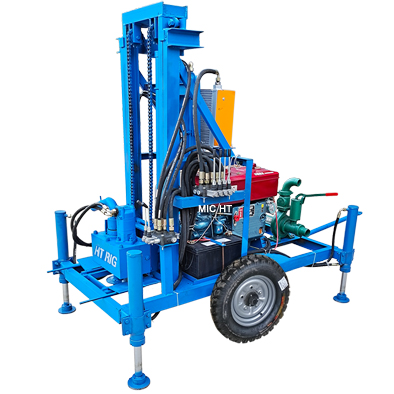

Mobile Mini Borehole Water Well Drilling Rigs Machine:

HT is a professional manufacturer for mobile water well borehole drilling rigs, mini type machine.

Mini borehole rig:

Model DH150
Principle Positive Cycle
Hydraulic Power 22Hp-Diesel Engine
Water Pump Power Centrifugal Pump--8Hp
Max Drilling Depth 150m
Max Drilling Diameter 420mm
Drilling Pipe 51mm diameter,1.5m/piece
Drilling Bit Alloy Steel For Soil 2 pieces
PDC For Rocks Diameter should be within 250mm
Other Parts For
One Complete Machine
High pressure water pump-1 unit
High pressure water pipe-5m
Tools, seat, oilseal, English manual, Etc

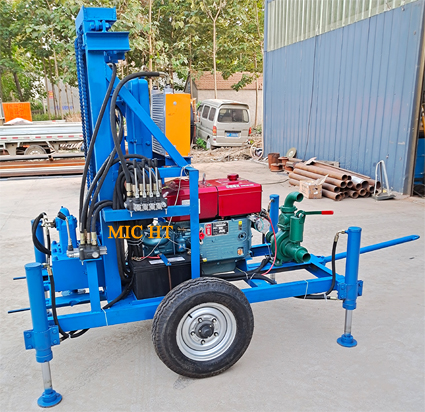

Mini borehole drilling machine:

Machine Rig To Drill Water Well

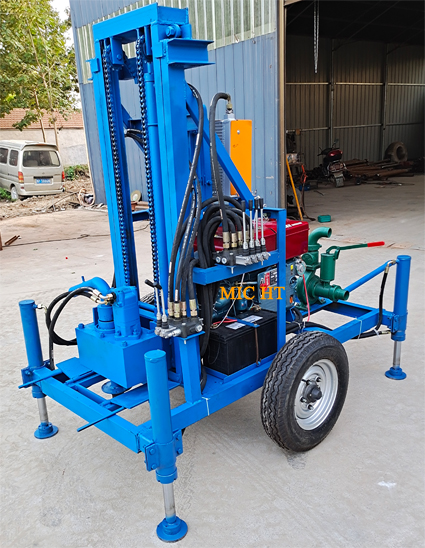

Mini water well drilling rigs:

DH150 Operation Video.


We also have electric E80/E100 mini borehole drilling machine:

water well drilling rig


Mobile borehole water well drilling rig E80 working video in Youtube:


Besides mini water well drilling rigs, we also have DH200 machine to drill water well:

water well drilling rig


Mobile borehole water well drilling machine DH200 working video in Youtube:


Operation Of mini water well drilling rigs:

Drilling Work : You should grasp the working essentials before the actual operation.
Choose The Location Of Wells.
After the wellhead location has been selected, shovel 30-50cm deep and diameter 30cm wellhead. then move the mini borehole drilling machine above the wellhead. The soil structure around the well requires good solid, underneath can not have bricks, gravel or firewood, to avoid water seepage, landslides or subsidence.
Dig A Reservoir:
About four meters away from the wellhead position, dig a cistern with caliber greater than 1.5 square meters, one meter deep, soft water hose is used to connect the pump and the faucet of drilling machine, hard water pipe is used to connect the pump and water in reservoir.
Run the mini borehole rig:
Run the machine according to instruction manual provided by us.
Add Drill Pipe One By One.
After the first pipe is down, you add the second pipe, one end of the second pipe is connected to the power head, another end is connected to the first pipe, make the water well drilling machine forward rotation to tighten the connection.
Remove Drill Pipe One By One.
After you touch the water level, you can discharge the pipe, first connect the pulling out tool to the power head, then use this tool to pull out all pipes one by one, make the machine, Reverse Rotation to loosen the connction of pipes.
