Looking for reliable used water borehole drilling rig machine? We offer quality used water borehole rig for sale. Browse our second hand water borehole drilling rig machine options to save cost. Find your second hand water borehole machine today !

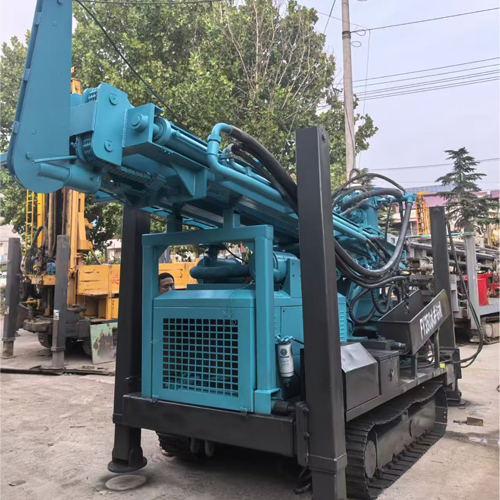

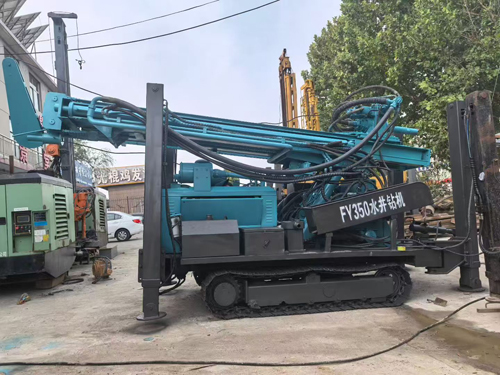

FY350 model:
1. Equipped with a 91KW turbocharged engine, providing strong power.
2. Dual-motor drive for high torque, compact size, and adjustable speed.
3. Triple gear pump ensures durability and reliability.
4. Modular platform, aesthetically pleasing design, equipped with pedals, easy operation.
5. Equipped with a clutch and radiator, suitable for high-altitude and cold-climate areas.
6. German-engineered travel motor; high torque and good climbing ability, low failure rate.
7. Can be equipped with dual systems: Air power system with air compressor; Mud pump system with mud pump.
| FY350 rubber crawler water well drilling rig | |||
| The weight (T) | 8.6 | Drill pipe diameter (mm) | Φ89 Φ102 |
| The hole diameter (mm) | 140-325 | Drill pipe length (m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth (m) | 350 | Rig lifting force (T) | 22 |
| One-time advance length (m) | 6.6 | Rapid rise speed (m/min) | 18 |
| Walking speed (km/h) | 2.5 | Fast feeding speed (m/min) | 33 |
| Climbing angles (Max) | 30 | Width of loading (m) | 2.7 |
| Equipped capacitor (kw) | 91 | Hoisting force of winch (T) | 2 |
| Using air pressure (MPA) | 1.7-3.4 | Swing torque (N.m) | 6200-8500 |
| Air consumption (m³/min) | 17-36 | Dimension (mm) | 6000×2000×2550 |
| Swing speed (rpm) | 66-135 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency (m/h) | 15-35 | High leg stroke (m) | 1.4 |
FY350 second hand water borehole drlling rig machine working video in Youtube:
