Reliable mini water well drilling machine, designed for efficient and compact structure. Affordable pricing with global shipping available.
GSD-40 model mini well drilling rig,it uses gasoline engine of 7.5Hp, so it can not be designed with integrated water pump either, we equip a 7.5Hp gasoline pump to support it. This mini borewell drilling machine uses mechanical power instead of hydraulic power. It is suitable for small investment and drill in shallow soft ground. The advantage of this mini water drilling machine is lightweight and low price.

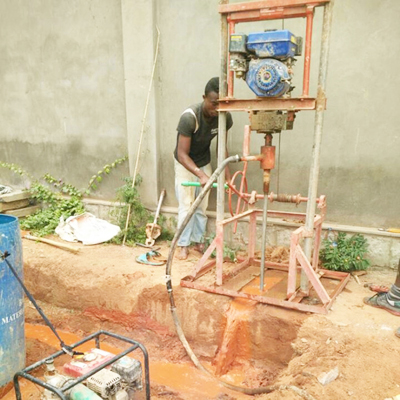

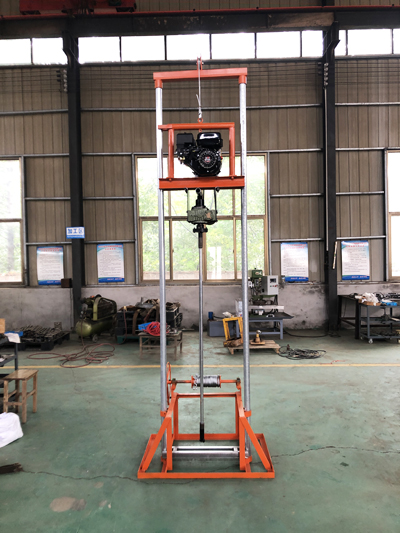

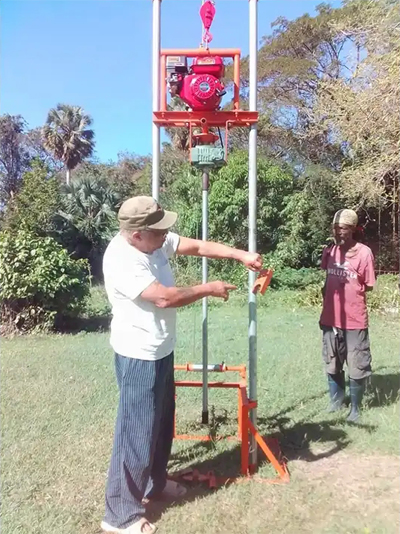

Here are the specifications and photos of our GSD-40 mini water drilling machine.
| Model | GSD-40 |
| Rig Power | 7.5Hp, gasoline type |
| Water Pump Power | 7.5Hp, gasoline type |
| Drilling way | Power head rotation + manual pressurization |
| Lift Way | Winch + manual lifting |
| Drilling pipe equipped | 40.5m (1.5m per piece, 50mm diameter, 27 pieces) |
| Drilling bit equipped | 6 inches x1, 4 inches x1 |
| Weight | 120 kg |
| Dimension (length x width x height) (mm) | 1000 x 700 x 3100 mm |




We also have diesel hydraulic DH150 100m mini borewell drilling machine:
DH150 mini borewell machine working video in Youtube:
Looking for a mini borewell machine that’s powerful, portable, and easy to operate? Our advanced mini borewell drilling rigs are designed for small-scale water well projects, especially in rural or hard-to-reach areas. With low fuel consumption, high efficiency, and simple maintenance, this compact borewell machine is ideal for homeowners, farmers, and small contractors who need reliable water access. Contact us today to get the best mini borewell machine price and start your water drilling project efficiently.
Besides electric water well drilling rigs, we also have big DH200 water well drilling machine:

DH200 working video in Youtube:
