Rock Sample Core Auger Drilling Rig Machine DHC100 LHC100

  • Core Sample Drilling Machine With Pressure Adding To Power Head
Core Sample Drilling Machine With Pressure Adding To Power Head

Core Sample Drilling Machine With Pressure Adding To Power Head

  • Function: Core Sample Drilling Rig
  • Brand Name: HT
  • Model Number: HC-100
  • Place of Origin: China (Mainland)
  • Description: HT is a professional manufacturer for core drilling machine, core sample drilling machine, core drill machine, core sample drill machine.
  • INQUIRY   EMAIL

Core Sample Drilling Machine :

HT is a professional manufacturer for core drilling machine, core sample drilling machine, core drill machine, core sample drill machine.

1 Applications Of Core Drilling Machine:

In mining and other geological engineering operations, coring sample is needed to obtain rock structure, physical and mechanical properties.Core-taking is the most direct means of exploration, it uses a hollow drill pipe to drill down from the surface, forming a cylindrical borehole in the rock formation, and obtaining core, ore, and soil from different depths in theborehole, Analytical studies were conducted to identify and classify rock formations.

2 Features Of core sample drilling machine:

Our HC-100 fully hydraulic core drilling machine can be used in different environments, such as ground and roadway, to meet different drilling requirements and has a wide range of applications.
Our core sample drilling machine has high working efficiency, can effectively save manpower, material, financial resources and time, improve working efficiency.
Our core drill machine has reasonable structure, simple installation and disassembly, and is easy to handle.

3 Technical Parameters Ofcore drill machine:

Working Way

hydraulic, two hydraulic systems, hydraulic transmission

Power Source

diesel powered

Power

25 Hp

Max Drilling Depth

100 m

Max Drilling Diameter

200 mm

Drilling Angle

0°-90 °

Rotation Speed

0-300 r/min (continuously variable transmission)

Max Torque

600 Nm

Max Lifting Force

3 T

Machine Height

2.6 m

Weight

500 kg

Dimension

1400 x 1250 x 2600 mm


Core Sample Drill Machine:

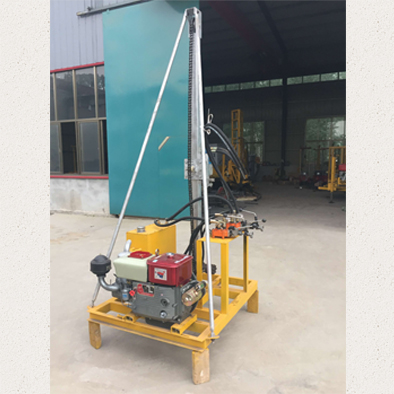

core drilling machine

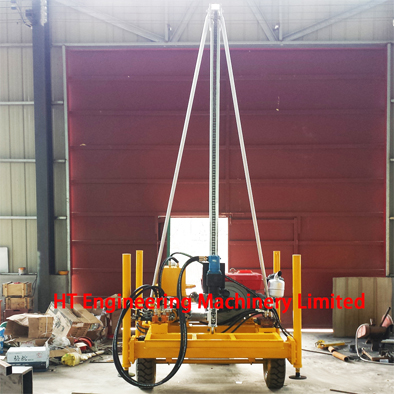

core sample drilling machine

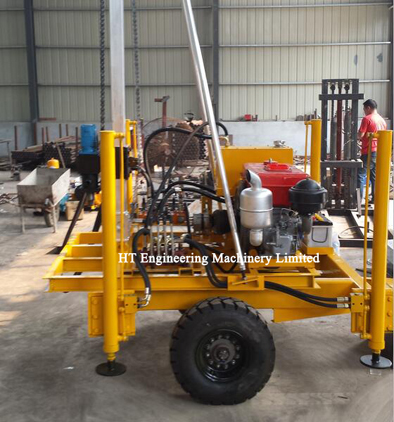

core sample drill machine


Strong Power Core Drilling Rig Machine.
Email: [email protected]
Mobile (Whasapp/Wechat): 008618638556116


Core Sample Drilling Testing Rig QZ-20 Model:

Drilling Diameter (mm)

46/60/75

Max Drilling Depth (m)

46mm—20m, 60mm—10m, 75mm—8m

Drilling Pipe Diameter (mm)

32

Rotation Speed (r/min)

360/720

Torque (n.m)

82 at 360r/min rotation speed

41 at 720r/min rotation speed

Power (kw)

3Kw(electric motor) or 6.5Hp(gasoline engine)

Weight (kg)

90

Dimension (length x width x height) (mm)

700x650x1950


Core Sample Drilling Testing Machine QZ-20 Model:

soil sample core drill rig

soil sample drilling machine
