Rock Sample Core Auger Drilling Rig Machine DHC100 LHC100

  • Surface Underground diamond Core Drilling Rig Machine For Mining HT Brand
  • Surface Underground diamond Core Drilling Rig Machine For Mining HT Brand
  • Surface Underground diamond Core Drilling Rig Machine For Mining HT Brand
  • Surface Underground diamond Core Drilling Rig Machine For Mining HT Brand
Surface Underground diamond Core Drilling Rig Machine For Mining HT BrandSurface Underground diamond Core Drilling Rig Machine For Mining HT BrandSurface Underground diamond Core Drilling Rig Machine For Mining HT BrandSurface Underground diamond Core Drilling Rig Machine For Mining HT Brand

Surface Underground diamond Core Drilling Rig Machine For Mining HT Brand

  • Function: Core Sample Drilling Rig
  • Brand Name: HT
  • Model Number: HC-100
  • Place of Origin: China (Mainland)
  • Description: Surface underground diamond core drilling rig for mining is a specialized piece of equipment used for geolog to extract a cylinder of material, typically earth or rock, from the ground.
  • INQUIRY   EMAIL

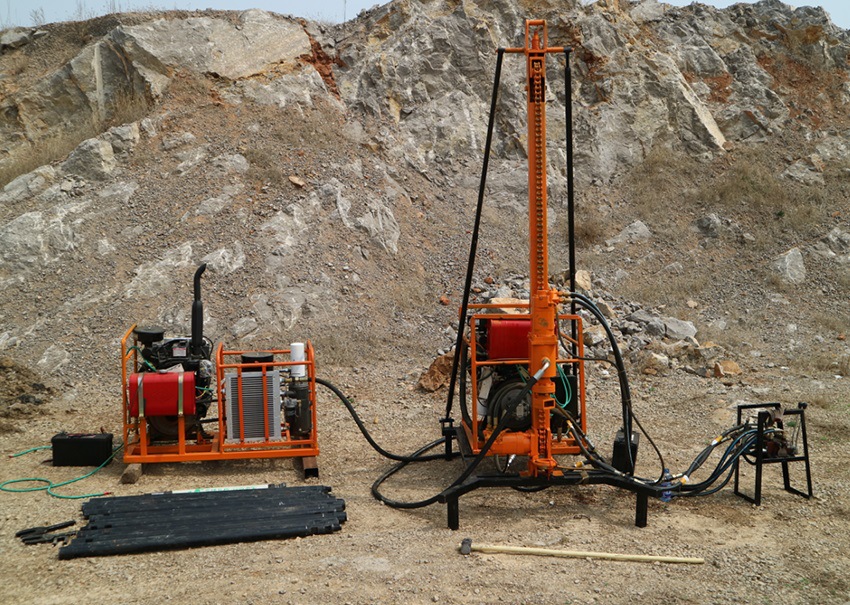

Surface Underground Diamond Core Drilling Rig Machine For Mining:

core drilling machine for mining is a specialized piece of equipment used to extract a cylinder of material, typically earth or rock, from the ground, can be use for Geolog, also called Geolog Core Drill Rig. this process is essential for exploratory purposes, allowing geologists and mining engineers to examine the underground strata to determine the location, quantity, and quality of mineral deposits. Here’s an overview of core drilling machines used in mining:
1 Surface Core Drilling Rigs: These are robust and highly capable machines designed for surface mining operations. They can drill deep into the earth to obtain core samples. These rigs are often mounted on trucks or tracks to allow easy movement around a mining site.
2 Underground Core Drilling Rigs: With diamond bit, specifically designed for underground mining environments, these rigs are smaller and more compact than surface rigs. underground diamond coredrillrig is engineered to operate in confined spaces and can be either electrically or hydraulically powered to ensure safety due to the lack of ventilation for exhaust gases.

1 Applications Core Drilling Mining:

In mining and other geological engineering operations, coring sample is needed to obtain rock structure, physical and mechanical properties.Core-taking is the most direct means of exploration, it uses a hollow drill pipe to drill down from the surface, forming a cylindrical borehole in the rock formation, and obtaining core, ore, and soil from different depths in the borehole, Analytical studies were conducted to identify and classify rock formations.

2 Features Core Drilling Machine Mining:

Our HC-100 fully hydraulic core drilling mining can be used in different environments, such as ground and roadway, to meet different drilling;requirements and has a wide range of applications.

Our core drilling machine mining has high working efficiency, can effectively save manpower, material, financial resources and time, improve working efficiency.
Our mining core drilling machine has reasonable structure, simple installation and disassembly, and is easy to handle.

<a href=https://www.htwaterwelldrillingrig.com/Products/Core-Drilling-Machine-For-Mining.html target='_blank'>core drilling machine for mining</a>

3 Technical Parameters Of Mining Core Drilling Machine:

Working Way hydraulic, two hydraulic systems, hydraulic transmission
Power Source diesel powered
Power 25 Hp
Max Drilling Depth 100 m
Max Drilling Diameter 200 mm
Drilling Angle 0°-90 °
Rotation Speed 0-300 r/min (continuously variable transmission)
Max Torque 600 Nm
Max Lifting Force 3 T
Machine Height 2.6 m
Weight 500 kg
Dimension (length x width x height) 1400 x 1250 x 2600 mm

Core Drilling Machine For Mining:

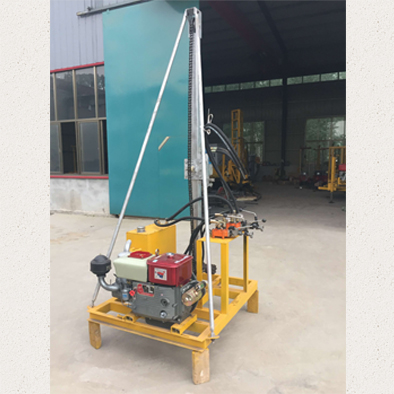

core drilling mining

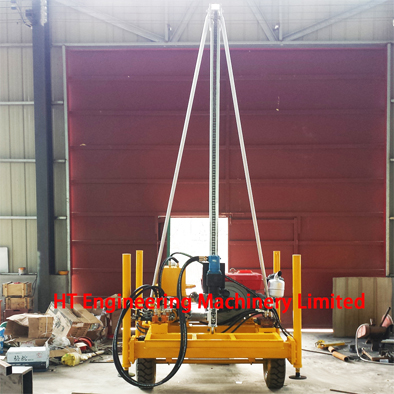

core drilling machine mining

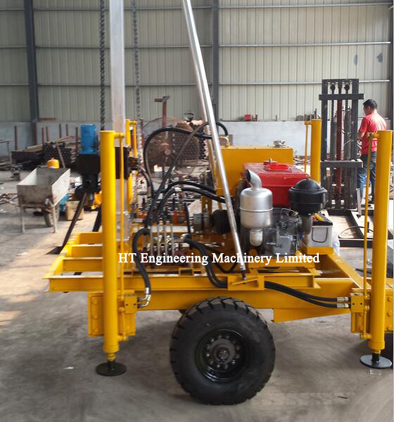

mining core drilling machine



Diamond Drill Rig :


Mining Coring Drilling Machine QZ-20 Model:

Drilling Diameter (mm) 46/60/75
Max Drilling Depth (m) 46mm—20m, 60mm—10m, 75mm—8m
Drilling Pipe Diameter (mm) 32
Rotation Speed (r/min) 360/720
Torque (n.m) 82 at 360r/min rotation speed
41 at 720r/min rotation speed
Power (kw) 3Kw(electric motor) or 6.5Hp(gasoline engine)
Weight (kg) 90
Dimension (length x width x height) (mm) 700x650x1950

Underground Core Drilling QZ-20 Model:

soil sample core drill rig

soil sample drilling machine


QZ20 Surface Core Drill Rig Video.
