Small Core Drilling Rig Machine Man Portable QZ-20

  • Mini Exploration Drill Rigs Core Drill Rig For Sale Portable
  • Mini Exploration Drill Rigs Core Drill Rig For Sale Portable
Mini Exploration Drill Rigs Core Drill Rig For Sale PortableMini Exploration Drill Rigs Core Drill Rig For Sale Portable

Mini Exploration Drill Rigs Core Drill Rig For Sale Portable

  • Function: Core Sample Drilling Rig
  • Brand Name: HT
  • Model Number: GC-20
  • Place of Origin: China (Mainland)
  • Description: HT is a professional manufacturer for mini exploration drill rigs for sale portable, exploration drill rigs for sale.
  • INQUIRY   EMAIL

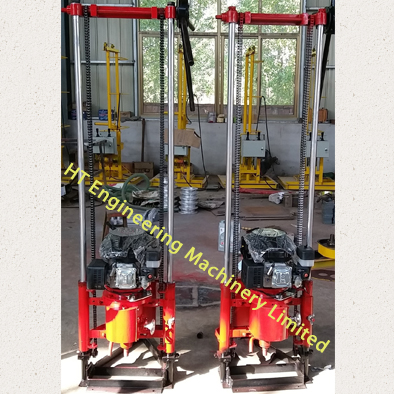

Mini Exploration Drill Rigs Core Drill Rig For Sale Portable:

HT is a professional manufacturer for mini exploration drill rigs for sale portable, exploration drill rigs for sale.

1 Applications of mini exploration drill rigs for sale portable:

GC-20 mini exploration drill rigs for sale portable is a portable multi-purpose engineering rig, is suitable for industrial and civil buildings,
geophysical pilot holes in bridges, railways,highways, hydropower and other industries.
Our exploration drill rigs for sale also used in advanced drilling, grouting and punching, pre-embedded pilot holes, blasting holes, inspection holes, small household wells, etc.

2 Features of exploration drill rigs for sale:

Compact structure, small size, light weight, high and low gear shifting, easy to move.

3 Mini Exploration Drill Rigs Core Drill Rig For Sale Portable:

Drilling Diameter (mm)

46/60/75

Max Drilling Depth (m)

46mm—20m, 60mm—10m, 75mm—8m

Drilling Pipe Diameter (mm)

32

Rotation Speed (r/min)

360/720

Torque (n.m)

82 at 360r/min rotation speed

41 at 720r/min rotation speed

Power (kw)

3Kw(electric motor) or 6.5Hp(gasoline engine)

Weight (kg)

90

Dimension (length x width x height) (mm)

700x650x1950

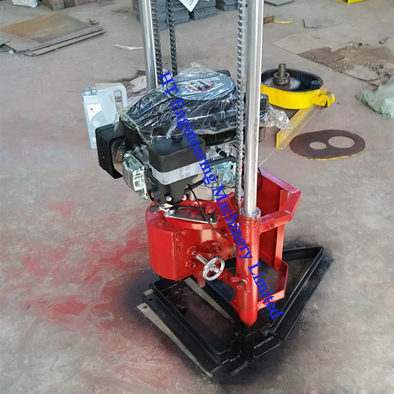

Mini Exploration Drill Rigs Core Drill Rig For Sale Portable:

 exploration drill rigs for sale


mini exploration drill rigs for sale portable

exploration drill rigs for sale


QZ20 Core Drilling Rig Machine Video.


Core Sample Drilling Testing Rig LHC100 Model:

Working Way

hydraulic, two hydraulic systems, hydraulic transmission

Power Source

diesel powered

Power

25 Hp

Max Drilling Depth

100 m

Max Drilling Diameter

200 mm

Drilling Angle

0°-90 °

Rotation Speed

0-300 r/min (continuously variable transmission)

Max Torque

600 Nm

Max Lifting Force

3 T

Machine Height

2.6 m

Weight

500 kg

Dimension

1400 x 1250 x 2600 mm

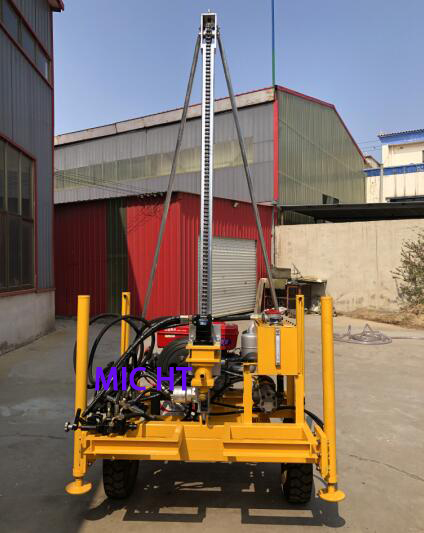

Core Sample Drilling Testing Machine LHC100 Model:

Core Sample Drilling Testing Rig Machine


LHC100 Core Drilling Rig Machine Video:
