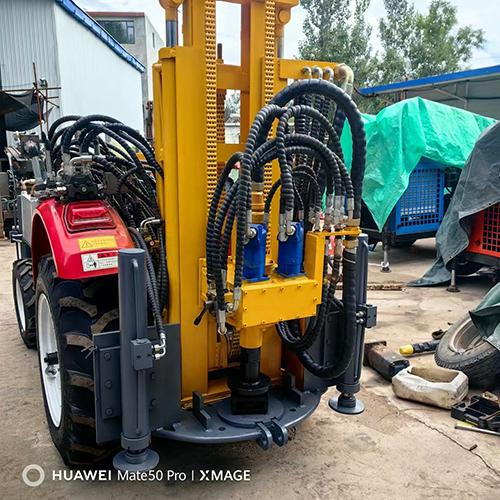

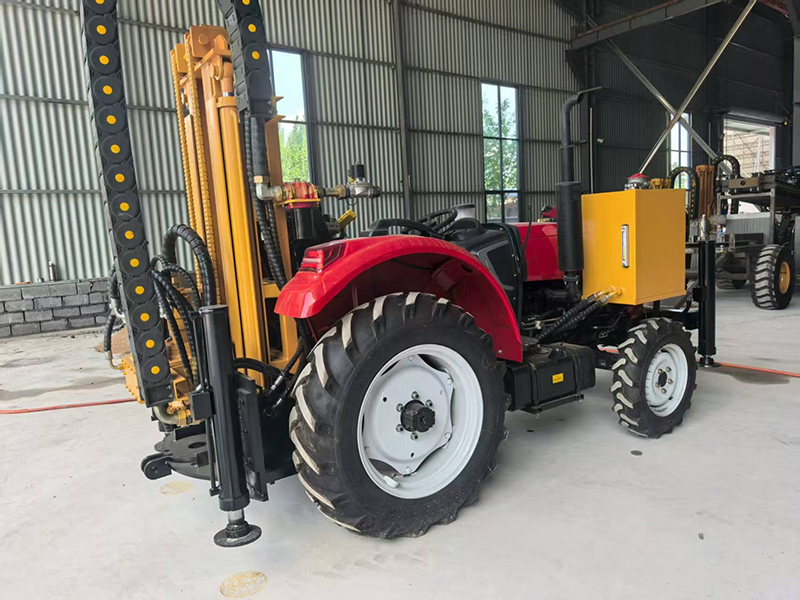

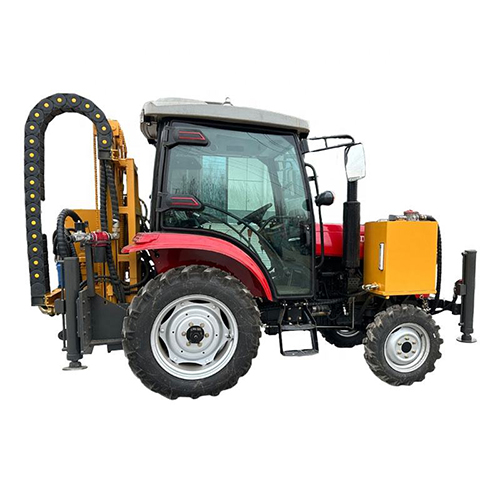

High Quality Tractor-Mounted Water Well Drilling Rig:
The product is based on a mature tractor chassis and integrates a complete pneumatic drilling system. It not only has the powerful off-road passability of tractors, but also can easily cope with complex terrains such as fields, mountains, and hills. It can also achieve efficient rock breaking through pneumatic drive and adapt to various geological conditions such as soil, sand layers, and weathered rock layers.
Machine parameters:
Model:HT300
Drill depth：220m
Overall weight:3t
Maximum drilling diameter:100-325mm
Tractor horsepower:50hp
Lift force:14t
Hydraulic pump:630
Maximum progress:2.4m
Maximum turning torque:4500-6000
Maximum rotation speed:70-140
Recommended drill pipe diameter:60/76/89
Transportation dimensions:L*W*H:3.3*1.55*2.2m
Way of working:Dual use water drill/gas drill
Single machine climbing angle:30°
Walking speed:30km/h
Tractor drive made:four-wheel drive
