Discover our range of rotary hammers and drilling hammers designed for tough drilling tasks. Whether you need a rotary hammer drill for heavy-duty construction or a down the hole hammer for precise drilling in challenging terrains, our equipment offers the power and durability you need. Explore our selection to find the right tools for your next project and achieve optimal results with reliable performance.
Details Of Drilling Hammer:
Technical Parameters of rotary hammer:
| Model | Chief（Without drill head) | 628 (mm) |
| HT-50A | Total（Without drill head） | 5.5kg |
| Exterior diameter | 46 (mm) | |
| Drill bit specifications | HT50 | |
| Diamond | 50 (mm) | |
| Rear joint thread | T38X8 | |
| Available work wind pressure | 0.4-0.7MPa | |
| Air consumption | 3.5-4m³/min | |
| Drilling head handle size | 29 (mm) |
| Model | Chief（Without drill head) | 745 (mm) |
| HT-65A | Total（Without drill head） | 11.5kg |
| Exterior diameter | 61 (mm) | |
| Drill bit specifications | HT65 | |
| Diamond | 65 (mm) | |
| Rear joint thread | T42X8 | |
| Available work wind pressure | 0.5-0.7MPa | |
| Air consumption | 4.5-6m³/min | |
| Drilling head handle size | 36.5 (mm) |
| Model | Chief（Without drill head) | 811 (mm) |
| HT-76A | Total（Without drill head） | 14 kg |
| Exterior diameter | 67 (mm) | |
| Drill bit specifications | HT76 | |
| Diamond | 76-80 (mm) | |
| Rear joint thread | T48X10 | |
| Available work wind pressure | 0.5-0.7MPa | |
| Air consumption | 5-7m³/min | |
| Drilling head handle size | 43 (mm) |

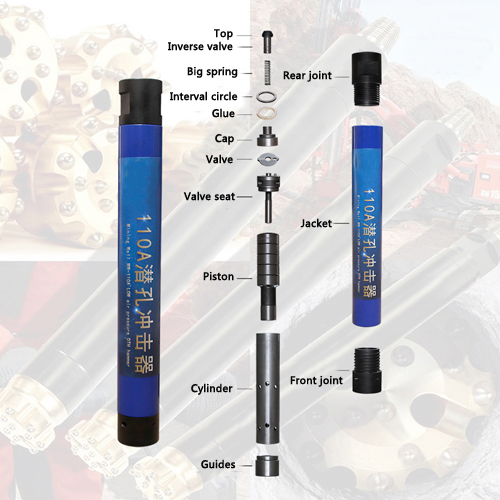

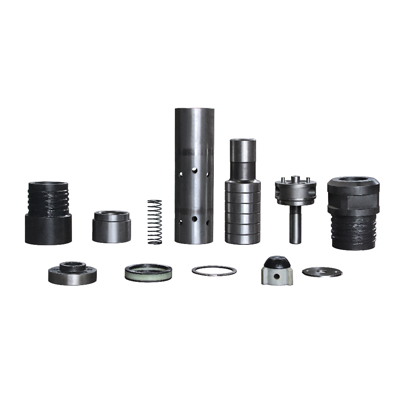

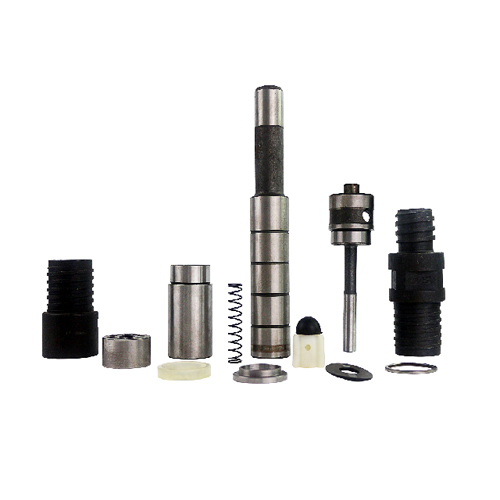

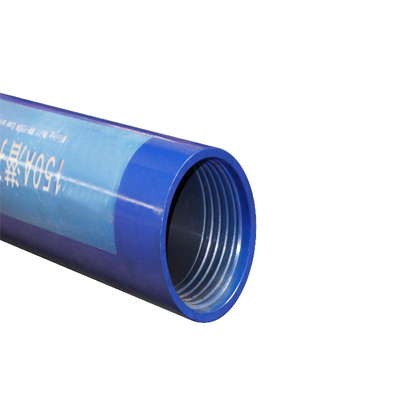

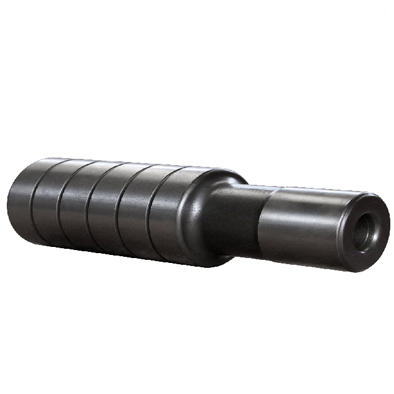

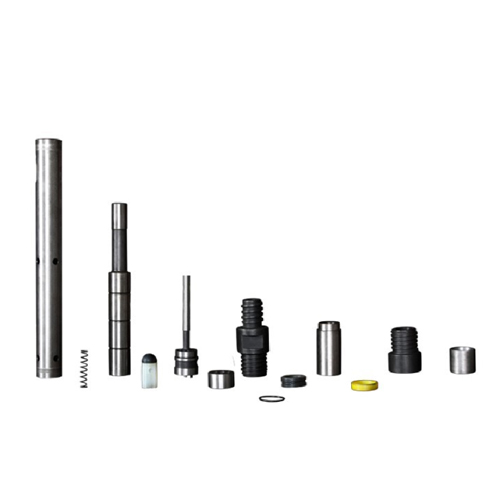

Photos Of Rotary Hammer Drill:
Packages of down to hole hammer:
Find a durable rotary hammer and down the hole hammer for sale. Our drilling hammer and rotary hammer drill deliver fast penetration in hard rock. Perfect for water well and mining drilling. Get a quote now.
