Trenchless Underground Horizontal Directional Drilling Machine

  • Horizontal Directional Drilling Equipment Machine With Strong Swivel
  • Horizontal Directional Drilling Equipment Machine With Strong Swivel
Horizontal Directional Drilling Equipment Machine With Strong SwivelHorizontal Directional Drilling Equipment Machine With Strong Swivel

Horizontal Directional Drilling Equipment Machine With Strong Swivel

  • directional drilling equipment
  • horizontal drilling machine
  • drilling machine horizontal
  • Description: Horizontal Directional Drilling Equipment Machine With Strong Swivel is a kind of construction machinery for laying a variety of underground utilities (pipes, cables, etc.) without excavating.
  • INQUIRY   EMAIL

Horizontal Directional Drilling Equipment Machine With Strong Swivel:

Product Description:

Horizontal Directional Drilling Equipment Machine With Strong Swivel is a kind of construction machinery for laying a variety of underground utilities (pipes, cables, etc.) without excavating the ground surface. It is widely used in the construction of water supply, electric power, telecommunication, natural gas, gas, oil and other pipelines laying construction projects.
Horizontal directional drilling technology is a new construction technology which combines the horizontal drilling and directional drilling technology of petroleum industry with the traditional pipeline construction method. It has the advantages of fast construction speed, high construction precision and low cost, and is widely used in water supply, gas, electricity, telecommunications, natural gas, oil and other pipeline

Our horizontal drilling machine is for Non-excavation laying of various pipelines such as communication cables,water supply,drainage, natural gas pipelines, etc.
Normal pipelines: the max diameter is 520mm,the max drilling distance is 60m.
Cement pipeline: the max diameter is 1800mm,the max drilling distance is 60m.

Drilling Machine Horizontal:

Model HDD E50
Power (Electricity) 380V/50Hz, industrial electricity
Power 7Kw, drilling power 4kw
hydraulic power station 3kw
Water Pump 1 pcs, 370w
Max Drilling Distance 50m
Max Drilling Diameter 450mm

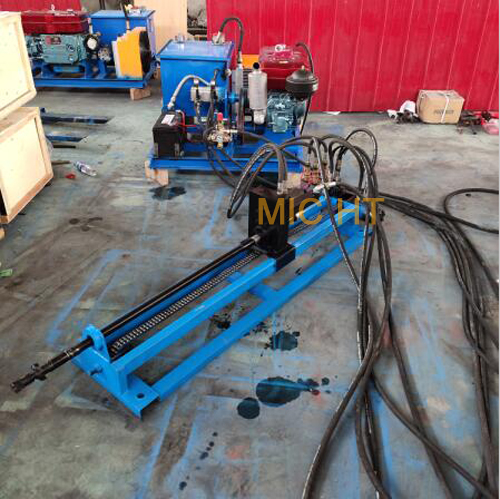

Horizontal Directional Drill Machine Swifel

Horizontal Directional Drill Machine Swifel


Electric E30 Horizontal Directional Drill Working Video.


Horizontal Directional Drilling Equipment:

Model HDD D50 HDD D60
Power (Diesel Engine) 20Hp 30Hp
Water Pump 1 pcs 1 pcs
Max Drilling Distance 50m 60m
Max Drilling Diameter 400mm 450mm

Horizontal Directional Drill Machine Swifel

Horizontal Directional Drill Machine Swifel


Horizontal Drill Machine Working Video.


Horizontal drilling machine has the same function as ground mole boring machine, is a critical tool for subterranean construction projects.Drilling machine horizontal uses water pump, ground mole boring machine uses air.
