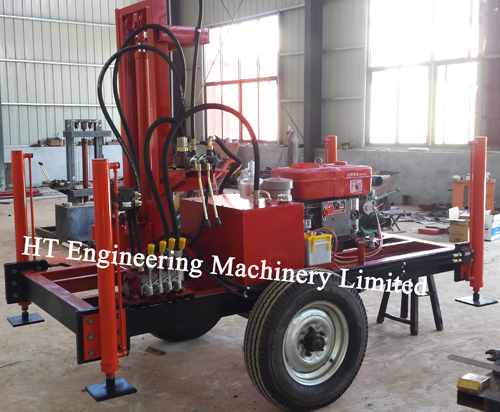

Water Well Borehole Drilling Rig--DH180

  • Geothermal Drills Rigs For Sale
Geothermal Drills Rigs For Sale

Geothermal Drills Rigs For Sale

  • Brand Name: HT
  • Type:Rotary Drilling Rig
  • Usage:Water Well
  • Certification: CE
  • Description: HT is a professional manufacturer for geothermal drills for sale, geothermal rigs for sale.
  • INQUIRY   EMAIL

Geothermal Drills Rigs For Sale:

HT is a professional manufacturer for mobile borehole drilling machine, mobile drilling rig, mobile rig for sale, mobile water well drilling rigs.

Geothermal Drills For Sale:

Model

DH180

Full Hydraulic Working Way

Single hydraulic system

Max Drilling Depth

180m

Max Drilling Diameter

450mm

Max Torque

700 Nm

Max Lifting Force

50 Kn

Weight

1300Kg

Power Source

Diesel engine powered

Main Machine Power

25 Hp

Drilling Angle

0°- 90 °

Rotation Speed

0-150 r/min (Continuously Variable Transmission)


Geothermal Rigs For Sale:

Geothermal Drills Rigs For Sale


DH180 Working Video.


Water well drilling rig machine, DH150 model, diesel hydraulic:

Model

DH150

Principle

Positive Cycle

Hydraulic Power

22Hp-Diesel Engine

Water Pump Poewr

Centrifugal Pump--8Hp

Max Drilling Depth

150m

Max Drilling Diameter

420mm

Drilling Pipe

51mm diameter,1.5m/piece

Drilling Bit

Alloy Steel For Soil

2 pieces

PDC For Rocks

Diameter should be within 150mm

Other Parts For One

Complete Machine

High pressure water pump-1 unit

High pressure water pipe-5m

Tools, seat, oilseal, English manual, Etc


DH150 small portable water well drilling rig machine, with auto water flow control function:

water well drilling rig


DH150 water well driling rig, water well drilling machine in Youtube:


Water Well Drilling Rig, Water Well Drilling Machine, Electric Model:

Model

E80

E100

Principle

Positive Cycle

Positive Cycle

Electricity

Single Phase

Three Phases

Drive Motor

2kw (60V DC)

3kw

Lift Mtor

1.5kw (60V DC)

1.5kw

High Pressure Submerged Pump

2.2kw

2.2kw

Max Drilling Depth

80m

100m

Max Drilling Diameter

200mm

400mm

Drilling Pipe

42mm diameter, 1.5m/piece

50mm diameter, 1.5m/piece

Drilling Pipe Equipped

50m

50m

Drilling Bit Equipped

2 pieces

2 pieces

One small bit (60mm,90mm) + one big bit (160-500mm)

Other Parts For One Complete Machine

High pressure submerged pump-1 unit

High pressure water pipe-5m

Voltage transformer(change 220V AC to 60V DC)

Only used for E80-P1 model

Tools, seat, oil seal, English manual, etc


Water Well Drilling Rig, Water Well Drilling Machine, E80 Electricity Model:

water well drilling rig


E80 water well driling rig, water well drilling machine in Youtube:
