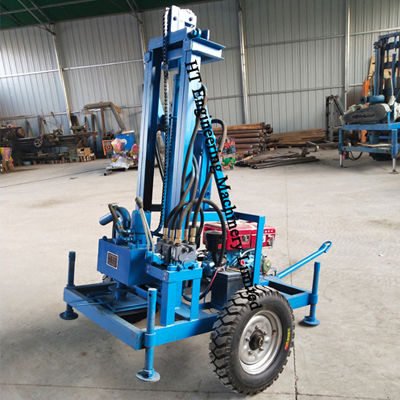

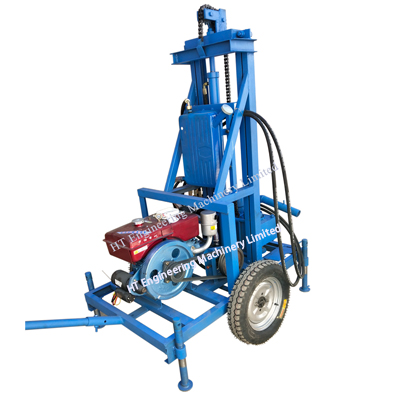

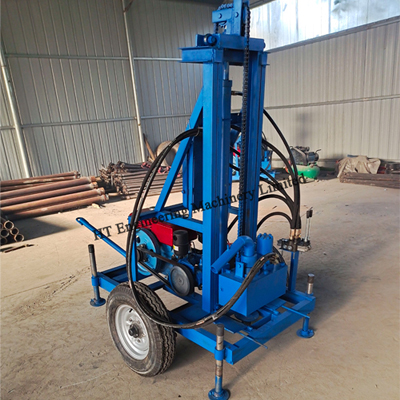

Small Water Well Drilling Rig Machine--DH120 (Diesel Hydraulic)

  • Homemade Diy Water Well Drilling Rig
  • Homemade Diy Water Well Drilling Rig
  • Homemade Diy Water Well Drilling Rig
  • Homemade Diy Water Well Drilling Rig
Homemade Diy Water Well Drilling RigHomemade Diy Water Well Drilling RigHomemade Diy Water Well Drilling RigHomemade Diy Water Well Drilling Rig

Homemade Diy Water Well Drilling Rig

  • Use: Water Well Drilling Rig
  • Type: Homemade Diy
  • Brand Name: HT
  • Certificate: CE
  • Description: Homemade diy water well drilling rig, do it yourself water well drilling equipment, HT brand, China.
  • INQUIRY   EMAIL

Homemade Diy Water Well Drilling Rig, Do It Yourself Water Well Drilling Equipment:

HT is a professional manufacturer for diy water well drilling rig, homemade water well drilling rig.

Diy Water Well Drilling Rig:

Model DH120
Principle Positive Cycle
Hydraulic Power 8Hp-Diesel Engine
Water Pump Centrifugal Pump--8Hp
Max Drilling Depth 120m
Max Drilling Diameter 400mm
Drilling Pipe 51mm diameter,1.5m/piece
Drilling Bit Alloy Steel For Soil 2 pieces
PDC For Rocks Diameter should be within 150mm
Other Parts For One
Complete Machine
High pressure water pump-1 unit
High pressure water pipe-5m
Tools, seat, oilseal, English manual, Etc


Homemade Water Well Drilling Rig:

Homemade Diy Water Well Drilling Rig


Water Well Drilling Rig DH120 Working Video.


We also have mini electric E80/E100 diy water well drilling rig:

water well drilling rig


E80 homemade water well drilling rig in Youtube:


We also have big DH200 water well drilling rig:

water well drilling rig


DH200 water well driling machine in Youtube:


How to drill water well yourself, do it yourself well ?
DIY well drilling provides a cost-effective solution for accessing clean water for irrigation , household use well, or other purposes. In this article, we'll explore the process of building a homemade well, assembling essential equipment, and drill your own water well diy.

1. Homemade Well Construction:
Building a homemade well allows you to tap into groundwater resources on your property. Here's how to construct a DIY well:
Site Selection: Choose a suitable location for your well, considering factors such as soil type, water table depth, and accessibility.
Digging: Use a water well drilling rig to excavate the well shaft to the desired depth. Ensure the diameter is wide enough to accommodate the casing and pumping equipment.
Casing Installation: Install PVC or steel casing into the well shaft to prevent collapse and contamination. Secure the casing in place using appropriate methods.
Well Cap: Install a well cap or cover to protect the well from debris, contaminants, and unauthorized access.

2 About water well rig:
Assembling the right equipment for drilling water wells is crucial for a successful DIY well drilling project. Here are some essential items to consider:
Water well rigs: you can buy well water drilling equipment from famous manufacturers sucn as HT Rig, China, or
you construct a simple drilling rig using steel pipes, a motor, a sturdy frame, and well drilling head.
The DIY rig should support the drilling process and allow you to penetrate the ground, this is suitable for manual water well drilling equipment or shallow well drilling equipment.
Drill Bits: Choose drill bits suitable for the soil and rock formations in your area, you can DIY a homemade water well drill bit or purchase together with the water well machine.
Water pump: A water pump is essential for water drilling to reduce friction and cool the drill bit, you also can purchase tother with the water well rig or use your own.
Other water well drilling tools : such as connector, wrench, spanner, hoist, pipe drawing tool, etc.

3 Safety Precautions:
Safety should always be your top priority for DIY wells, especially one that involves heavy equipment and potential hazards, seek professional advice if you're unsure about any step of the process.
With these considerations in mind, you can embark on your DIY water well drilling adventure with confidence.
If you need more information about diy water well drill, you can contact way through the information below:


Mobile (Whasapp/Wechat): 008618638556116

Email: [email protected]     [email protected]
